Outdoor Solutions• Enhanced, robust and solid profile technology
• High performance thermal control thanks to the natural ventilation system
• Anti - vandalism designs
• Dimensions to meet your needs
• Customer - specific solutions for installation and expansion

Outdoor Solutions

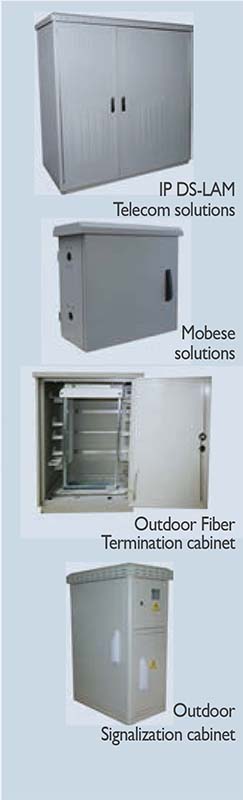

IP55 Outdoor enclosures

Double panelled, robust and sturdy aluminium external framework; New Estap designed outdoor enclosures, provide maximum protection against environmental impact, vandalism, EMC and extreme thermal conditions. Use this outdoor cabinet whenever maximum protection is a must.

Protection against environmental influences

New Estap designed outdoor enclosures protects valuable and sensitive equipment, against rain, snow, wind, sunshine or earthquakes. Estap products effectively protect your technology from environmental influences, being optimally corrosion resistance:

Your investment is safeguarded, now and in the future.

Protection against electromagnetic interference (EMI)

New Estap designed enclosures are effective against electromagnetic emissions that prevent the penetration of disruptive impacts and simultaneously protect surrounds from emitted radiation.

Protection against thermal extremes

Hot or cold, new Estap designed enclosures maintains equipment at its optimum operating temperature. Available with special paint to enhance heat radiation and reflection.

Protection against vandalism, forcible entry and damage

No way in. New Estap designed enclosures are hard to break in to thanks to a robust construction and quality material with concealed hinges. Special coating ensure anti-grafitti, anti-poster.

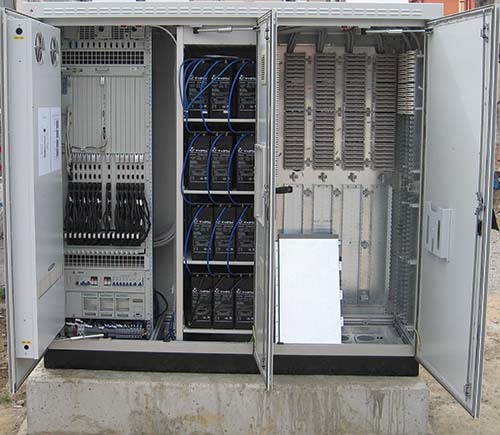

TELECOMMUNICATION
Outdoor SolutionsNew Estap designed outdoor enclosures protect your technological investments. Cool and safe. In all fields and applications, Estap brings you closer to your customer. Voice, mobile telephony and fixed line networks, data, fiber, internet; DSL, IPDSL, 3G, CATV, LAN, WAN, MAN... and all the latest telecommunication solutions and system.

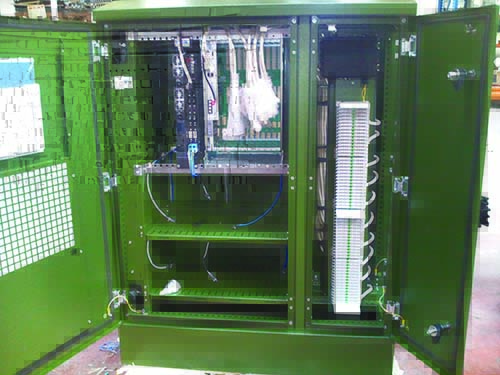

Outdoor SolutionsTRAFFIC
New Estap designed outdoor enclosures secure your valuable electronics wherever they’re located. Control, Scada, data transfer, automation.
• Railway Traffic Control
• Shipping
• Road Traffic
• Air Traffic

Outdoor Solutions

Outdoor Solutions



FEATURES

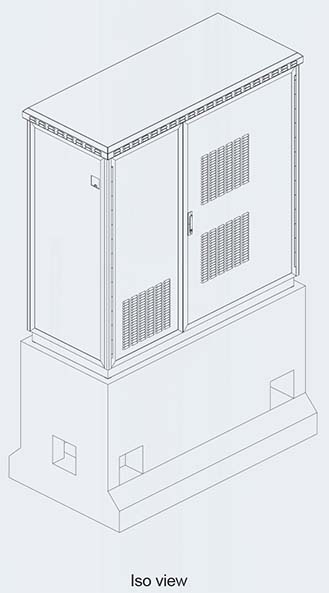

Outside size: Outdoor cabinets production depend on the project requirement for design and dimensions, using either plinth in the ground or installation on the quide plate.

Doors: Open 180 degree with adjustable locking device and three point locking system on each front, side and rear doors.

Colour & Finish: All aluminium parts are chromated and powder coated with RAL 7035 or RAL 7032. Inner parts are zinc coated sheet steel or stainless steel dependant on project requirements. Special anti-grafitti, anti-poster and heat radiation enchancement coatings are optional.

Protection Class: IP55 dust and waterproof.

Cable Installation: Unless specified, from bottom.

Cooling System: Possible solutions can be mounted on the front door, side panels or roof. Fan with filter
- Heat Exchanger
- Air conditioner

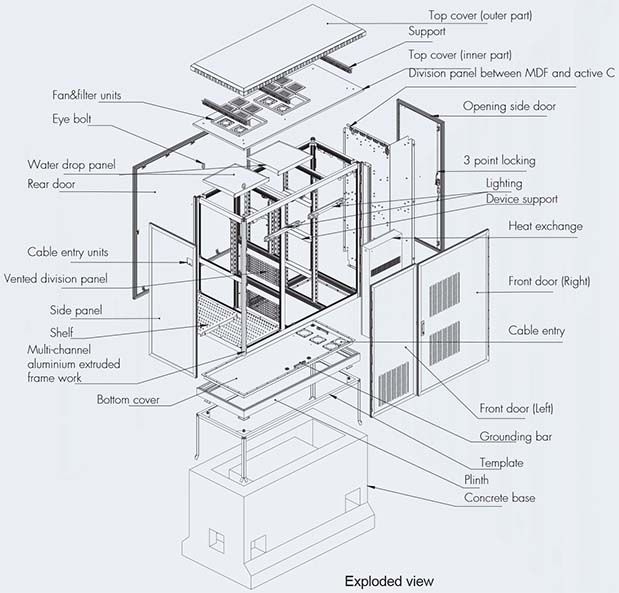

Construction:Modular construction with external profile is robust and sturdy. Special design for fixing nuts give a wide construction range. Doors, side panels and top are all double panelled, double skin and vented. Thanks to modular structure of cabinet, compartments can be created for all projects.
