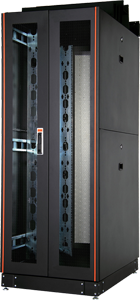

DCMax Datacenter Cabinets

DCMax Datacenter Server Cabinets are designed for hot aisle and cold aisle structures, widely used in enterprise datacenters. Available in IP20 / IP55.

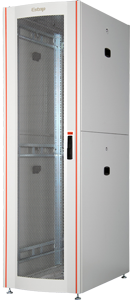

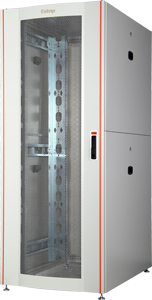

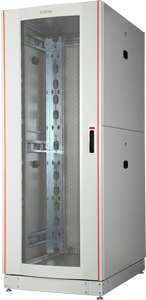

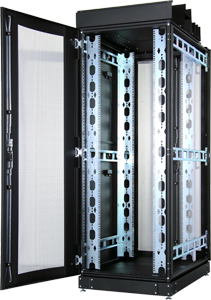

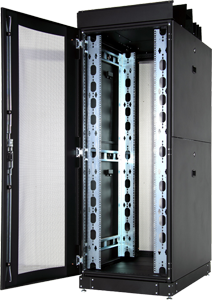

IP20 DCMax cabinets have 80% perforation on front (1ea.) and rear (1ea.) doors and provide passive air ventilation for cabinets.

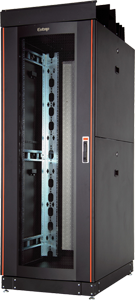

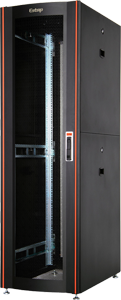

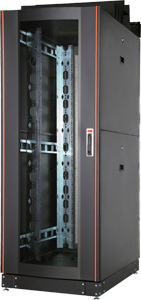

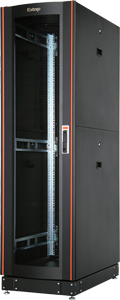

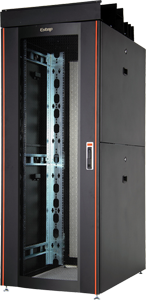

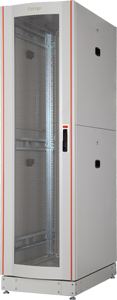

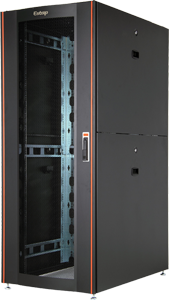

IP55 DCMax cabinets have optionally a secure glass front door inside a solid metal frame, or a completely solid front door (1 ea.). Rear door is foamed with sealing gasket (1ea.)

Extra depth of cabinets provides more space for cabling and cooling.

This unique design:

  • Provides maximum cooling performance in IP20 and IP55 protection class.
  • Offers a wide range of cabinet sizes and accessories.
  • H = 42/47U , W = 600/800 mm D = 1000 / 1100 / 1200 mm.
  • Provides maximum inner space for servers.
  • Provides maximum space for professional cable management.
  • Is a heavy duty construction with a load carrying capacity of 1500 kg.
  • Datacenter cabinets passed BELLCORE GR-63-CORE zone 4 test (NEBS requirements), with a physical load of 1000 kg.
  • DCMax cabinets are compatible with all vendor’s servers.
  • High technical performance and grounding continuity.
  • Colour options : RAL 7035 light grey / RAL 9005 black.

Product Catalog


DCMax Cabinets Catalog (PDF, 727KB)
