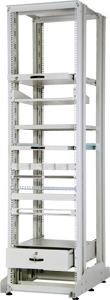

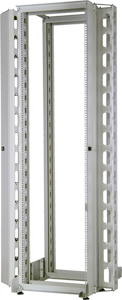

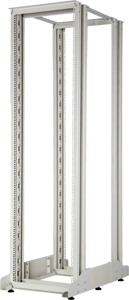

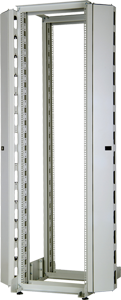

RELAYRack – Open Frame
Single frame D= 600 mm, Double frame D= 800 – 1000 mm

RELAYrack has a modular, flatpack design.

It is designed to house and provide easy access to 19’’ standard mounting devices. For use in a minimally dusty air conditioned environment. The RELAYrack offers a highly cost-effective, assembly-friendly solution for numerous applications in the field of network technology and electronics. Its sMarch design features allow use as a single or double frame; when used as a double frame, its depth can be adjusted using an extention kit. (D=600 mm and D=800 mm).

It is easily assembled and dismantled and the modular design allows standard accessories to support 4 point fixing for both sliding and fixed shelves. (Please see accessories for more details.)

Uprights are punched in full-length with square holes to use a standard accessory cable ring for cable management. Levelling feet are also as standard.

Its sturdy upright frames are 9 fold special frames each side for maximum versality.

Double frame designed for server/ PC storage and shelving. Containing all devices and server this offers a functional yet professional option to leave all racks accessible.

It allows for easy maintenance as all 4 post racks can be connected side-by-side. It can also be used for a device console or device storage rack.

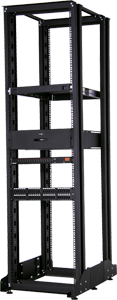

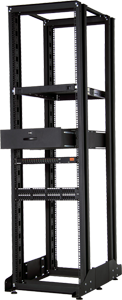

Colour options : RAL 7035 light grey / RAL 9005 black.

---

Product Catalog

---

RELAYRack Catalog (PDF, 735KB)
